4" & 6" Encapsulated-resin Filled Motors

ECT-4CF / ECT-6CF series

Encapsulated-resin Filled Motors

Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” & 6" or larger well.

The motor is 100% tested before shipment.

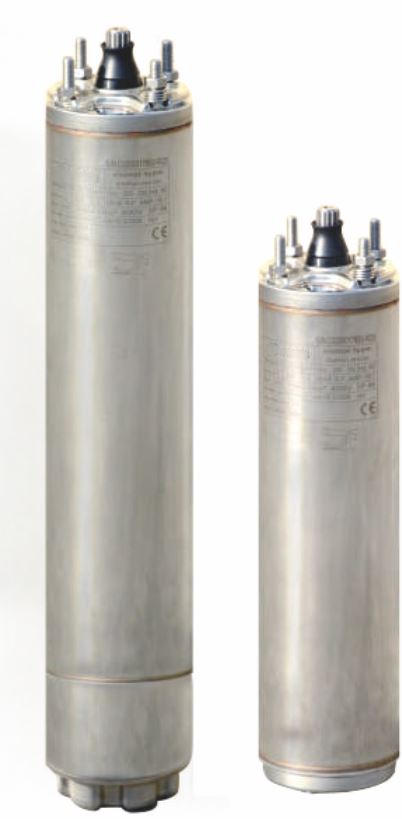

4" FEATURES

1. Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.

2. High efficiency provides operation cost savings.

3. Thrust pad.

4. Copper wiring.

5. Pressure equalizing diaphragm.

6. Removable lead connector.

7. Control boxes available for single phase motor.

8. Standard NEMA mounting dimensions.

9. Lightning arrester is available in option (Single phase).

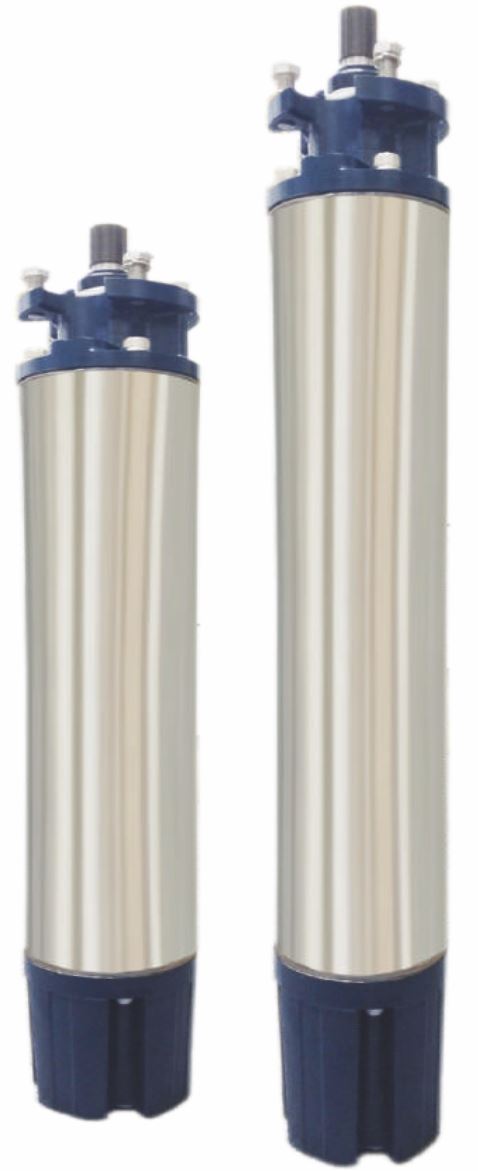

6" FEATURES

1. Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.

2. High efficiency provides operation cost savings.

3. Thrust pad.

4. Copper wiring.

5. Pressure equalizing diaphragm.

6. Removable lead connector.

7. Standard NEMA mounting dimensions.

8. Motor with carbon and ceramic Mechanical seal.( Optional : SiC / SiC )

CATALOGUE

ECT-4CF / ECT-6CF series (50HZ / 60HZ)
